NOW deeper, more uniform polymerization.
Woodpecker’s NEW O-Star Pro Cordless Curing Lamp uses 29 blue and purple LED chips arranged in a mixed, interleaved pattern that blend evenly. This unique design prevents irregular stains and/or dark areas.
The uniform beam promotes the complete reaction of the photo-initiator within the resin improving the curing efficiency.
More concentrated light output thanks to the light angle of only 10.8º, ensuring perfect depth curing.
It has collimated radiation technology optimizing clinical results by offering a uniform and concentrated beam of light, which ensures that the intensity is constant from the center to the edges, guaranteeing homogeneous curing and avoiding failures. Thanks to its ability to penetrate more efficiently into the deep layers of the resin (greater depth of polymerization) and the lower loss of energy, efficiency and reliability are increased, minimizing the risk of partial cures, marginal leaks or postoperative sensitivity in restorations.
The O-Star Pro has a new “Pulse” output mode that generates less heat while ensuring a polymerization depth of more than 3mm in just 5 seconds. The heat of this working mode is reduced by 20% compared to the constant heat output.
Characteristics:
- 29 blue and purple LED chips sandwiched evenly ==> Avoid smudges or dark areas
- Light angle of only 10.8° ==> More focused beam
- 20% less heat
- Wireless
- No waiting time
- Wavelength: 385 – 515 nm.
- Dual-length system (blue light + ultraviolet light) or multiple wavelength system. Technology capable of polymerising all light-curing dental materials.
- Display OLED
- Polymerization surface: 10mm
- Weight: 108 gr
- Dimensions: Ø 23 x 204mm
- Warranty: 24 months (6 months on accessories)

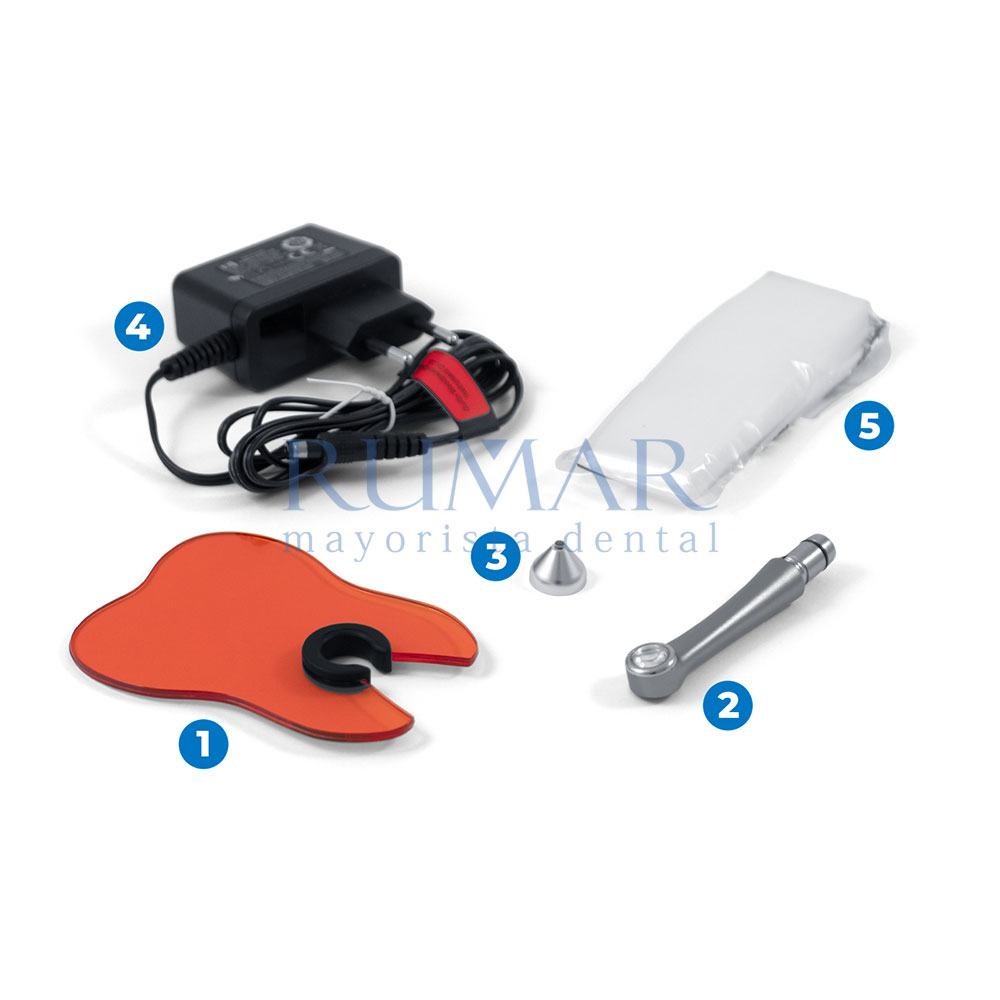

Supplies include:
- Eye Protector
- Ostar PRO Tip
- Dot cure lens
- Transformer charger
- Disposable Sleeves
Working modes:
- Turbo: Cures 2 mm of resin in just 1 second thanks to its ultra-high intensity. (2,700-3,000 mW/cm2)
- High: Provides a fast and deep cure in just 3 or 5 seconds. (1,800-2,000 mW/cm2)
- Ortho: Specific for bonding orthodontic brackets, with adjustable cycles of 3×5 seconds or 3×10 seconds, with a single press. (2,700-3,000 mW/cm2)
- Normal: Ideal for general restorations, with adjustable polymerization times of 5, 10, 15 or 20 seconds. (1,000-1,200 mW/cm2)
- Ramp (Soft): Reduces resin shrinkage and the risk of micro-leaks, perfect for patients with delicate needs. 5, 10, 15 or 20 sec. cycles (1,000-1,200 mW/cm2)
- Staggered (Pulse): Effectively dissipates heat, ensuring comfort during prolonged treatment cycles. 5, 10, 15 or 20 sec. cycles (1,000-1,200 mW/cm2)
- Check: Uses a violet light for the precise detection of cavities, dental tartar, fissures and composite, in combination with special glasses. 30 or 60 sec. (200 – 400 mW/cm2)
