X-Star | Woodpecker Cordless Curing Lamp

X-Star | Wireless curing lamp

MAXIMUM power and precision in an ergonomic design.

Woodpecker’s NEW X-Star Wireless Curing Lamp uses 13 LED chips: 8 blue, 1 violet and 4 white (for the new Diagnostic mode).

The uniform beam promotes the complete reaction of the photo-initiator within the resin improving the curing efficiency.

Output at a light angle of only 8.5º, ensuring perfect depth curing with its most focused beam.

It has collimated radiation technology optimizing clinical results by offering a uniform and concentrated beam of light, which ensures that the intensity is constant from the center to the edges, guaranteeing homogeneous curing and avoiding failures. Thanks to its ability to penetrate more efficiently into the deep layers of the resin (greater depth of polymerization) and the lower loss of energy, efficiency and reliability are increased, minimizing the risk of partial cures, marginal leaks or postoperative sensitivity in restorations.

The X-Star Pro has the “Pulse” output mode that generates less heat while ensuring a polymerization depth of more than 3mm in just 5 seconds. The heat of this working mode is reduced by 20% compared to the constant heat output.

In addition, it incorporates the “Diagnostic” mode that provides white light illumination for clinical diagnosis, evaluate lesions, detect hidden cavities and observe possible defects in the teeth before or during treatment.

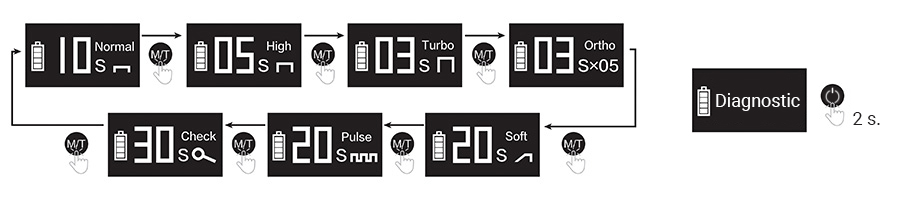

Working modes:

1. Turbo: Cures 2 mm of resin in just 1 second thanks to its ultra-high intensity. (2,700-3,000 mW/^cm2)
2. High: Provides a fast and deep cure in just 3 or 5 seconds. (1,800-2,000 mW/^cm2)
3. Ortho: Specific for bonding orthodontic brackets, with adjustable cycles of 3×5 seconds or 3×10 seconds, with a single press. (2,700-3,000 mW/^cm2)
4. Normal: Ideal for general restorations, with adjustable polymerization times of 5, 10, 15 or 20 seconds. (1,000-1,200 mW/^cm2)
5. Ramp (Soft): Reduces resin shrinkage and the risk of micro-leaks, perfect for patients with delicate needs. 5, 10, 15 or 20 sec. cycles (1,000-1,200 mW/^cm2)
6. Staggered (Pulse): Effectively dissipates heat, ensuring comfort during prolonged treatment cycles. 5, 10, 15 or 20 sec. cycles (1,000-1,200 mW/^cm2)
7. Check: Uses a violet light for the precise detection of cavities, dental tartar, fissures and composite, in combination with special glasses. 30 or 60 sec. (200 – 400 mW/^cm2)
8. Diagnostic (NEW): White light illumination for clinical diagnosis, evaluating lesions, detecting hidden cavities, and observing possible defects in the teeth before or during treatment.

Characteristics:

• 13 LED chips: 8 blue, 1 violet and 4 white
• Light angle of only 8.5° at a distance of 10 mm ==> More focused beam
• 20% less heat
• Wireless
• No waiting time
• Wavelength: 385 – 515 nm.
• Dual-length system (blue light + ultraviolet light) or multiple wavelength system. Technology capable of polymerising all light-curing dental materials.
• Display OLED
• Polymerization surface: 12mm
• Weight: 108 gr
• Dimensions: Ø 23 x 204mm
• Warranty: 24 months (6 months on accessories)

Supply includes:

1. Charging base with potentiometer included.
2. Replacement battery.
3. 5 Cure Lenses:
   1. Point cure
   2. Diffuser
   3. Slim Point
   4. Ball Tip Point
   5. Deep Access
4. Transformer charger .
5. Eye protector .
6. Disposable cases .
