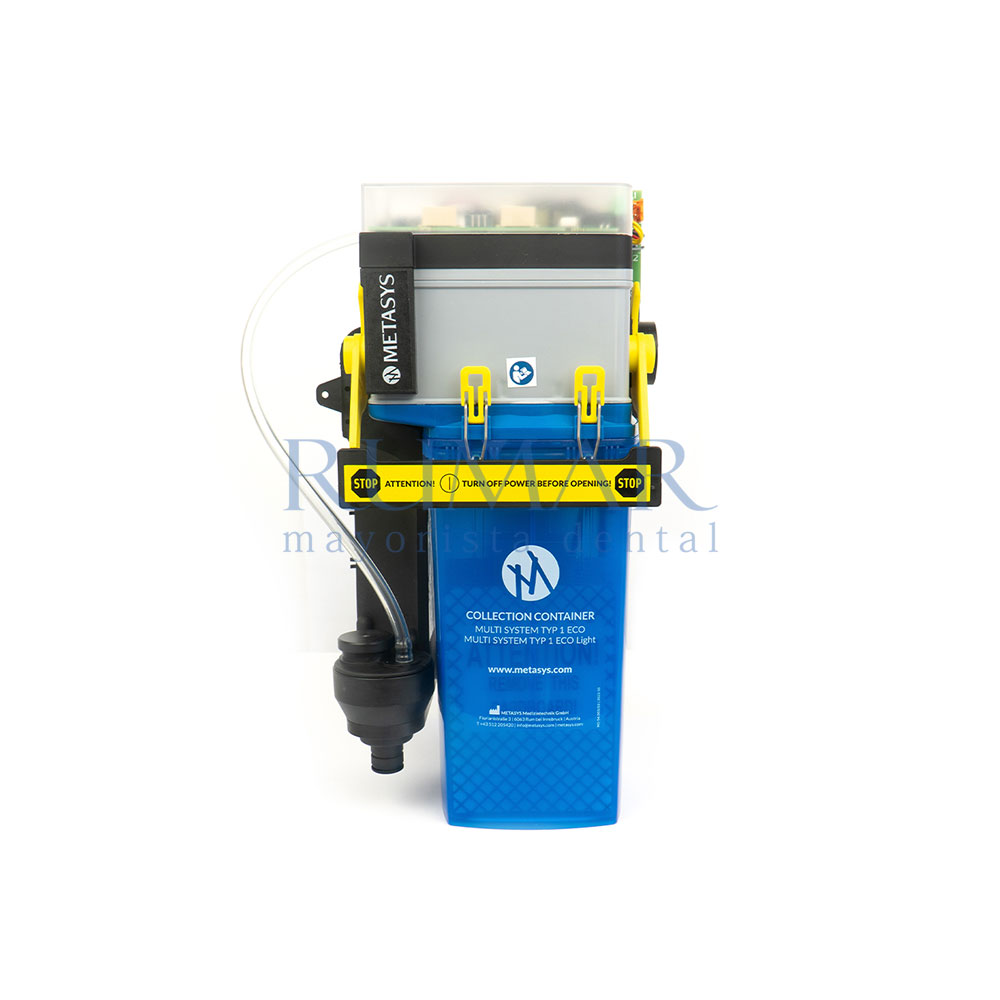

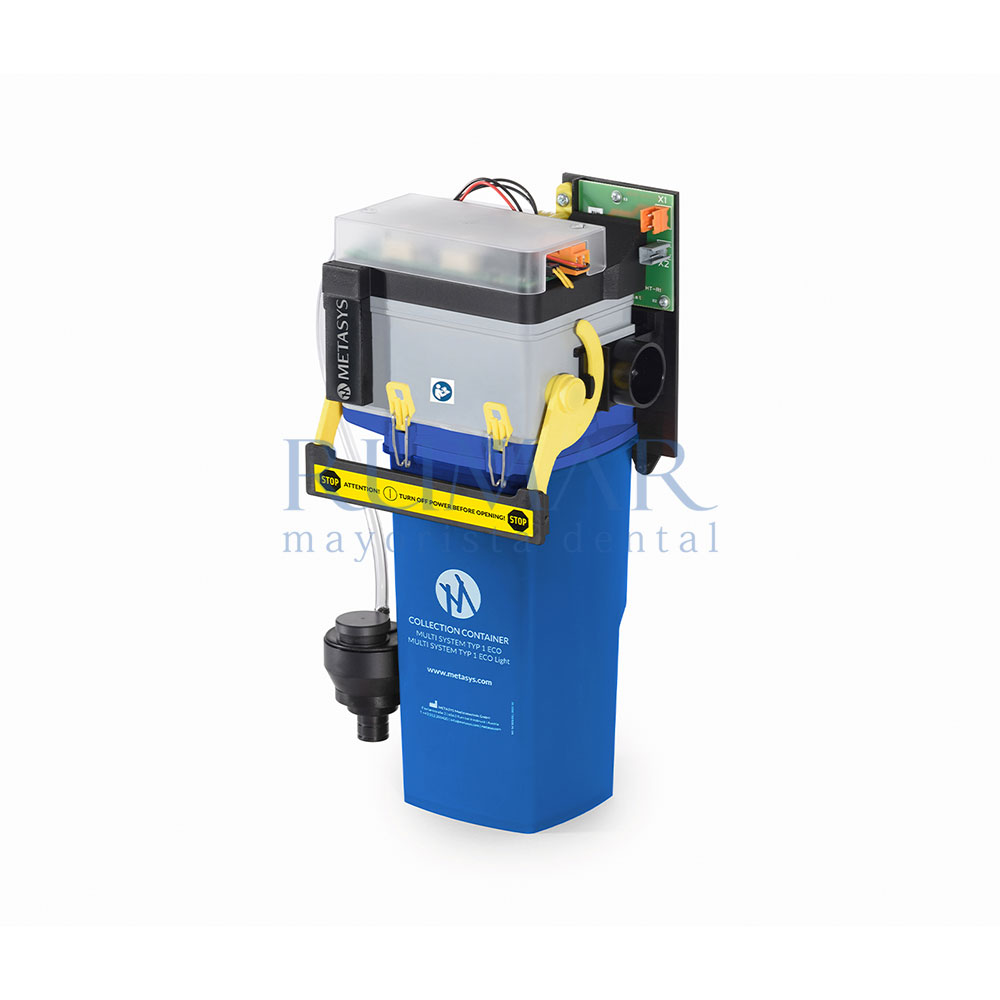

Imprimir / Print Metasys MST 1 ECO LIGHT air/water separator
Separation module with integrated place selection valve.
The water-air separation module is equipped with its own place selection valve. That is why it does not require other additional installations.
Various ways to apply
The various assembly versions as well as the in-house applications, available for all common treatment units, enable effortless and, above all, fast assembly.
Characteristics:
- Power supply: 24 V AC.
- Frecuency: 50/60 Hz
- Max. current consumption: 1,5 A
- Max. electrical shaft power: 46 VA
- Max. water flow rate: 4,5 l/min
- Max. water flow rate from spittoon: 3,0 l/min
- Max. water flow rate from suction line: 1,5 l/min
- Negative pressure zone: 50 mbar – 250 mbar
- Volume of container: 300 cm3
- Dimensions (H x W x D): 305 x 163 x 104 mm
- Includes: Basic installation kit
- Warranty: *36 months
(Metasys Ref.: 13000001 / 01010033)
*With maintenance requirement.
