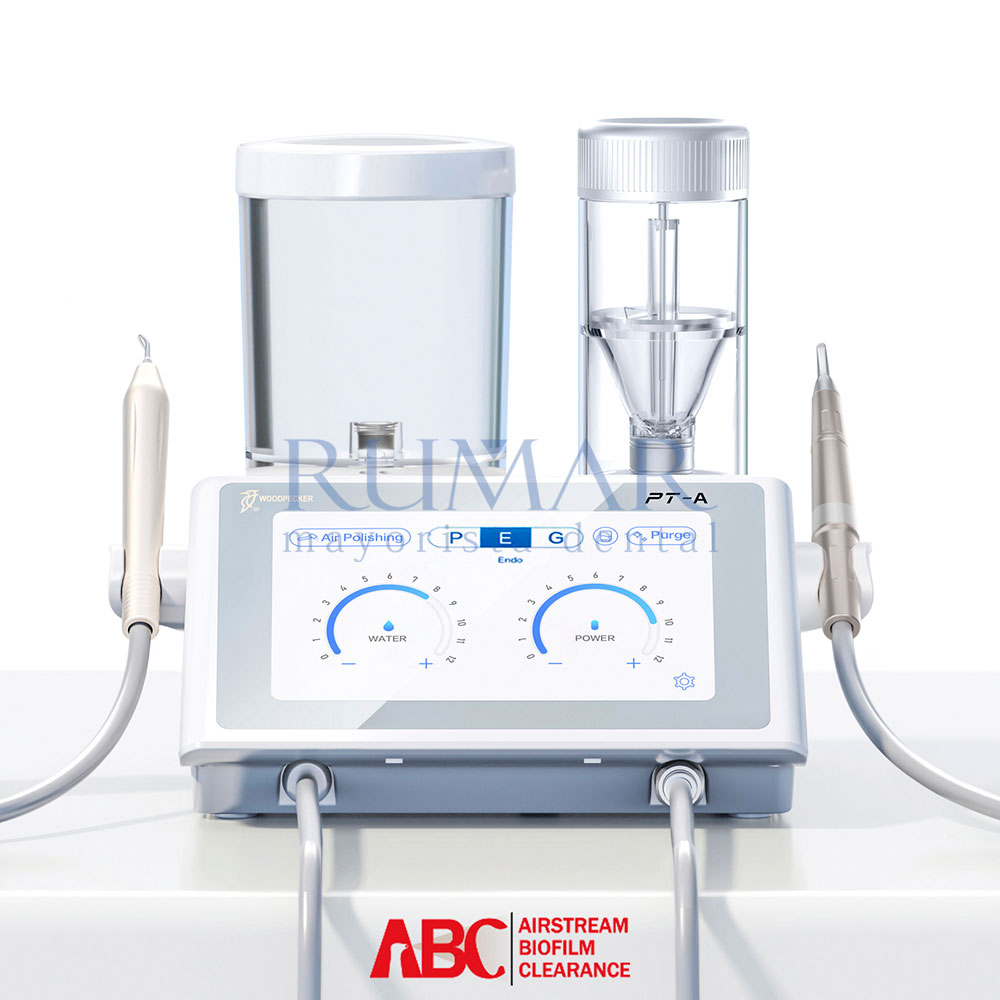

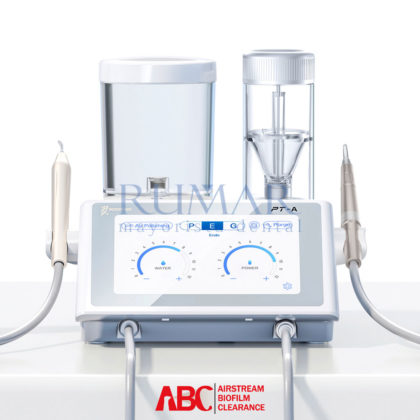

PT-A | Ultrasonic + Woodpecker air polisher
ONLY FOR THE MOST DEMANDING!
Combined and complete solution for perfect prophylaxis: efficient, comfortable and safe.
DIFFERENTIATE YOURSELF FROM YOUR COMPETITORS AND OFFER THE BEST TO YOUR PATIENTS
Water heater: eliminates the pain and sensitivity generated by cold water during treatment. It makes the treatment more comfortable for the patient.
Wide touch screen: Liquid and splash proof and is capable of perceiving touch with gloves through protective film.
Automatic activation depending on the handpiece that is lifted from the holder.
Multifunction foot pedal allows you to operate the device hands-free, including “Boost Mode” (Designed to remove stubborn stains during treatment. Pressing the “Boost Mode” button will raise the working power by 3 levels and when released it will return to the preset power).
1.- AIR POLISHER
Powerful and versatile 2 IN 1 air polisher: Supragingival Function and Subgingival Function designed to remove Biofilm and surface stains, even in the most difficult to reach areas.
New lighter and more aerodynamic design optimized to avoid pressure losses, achieving a greater capacity to remove plaque and pigmentation while making it more difficult to generate jams and reducing fatigue during use.
Supragingival function: its AP-1 handpiece with mini steel head projects a precise and effective jet of dust of ø0.7mm surrounded by a water ring that protects soft tissues for maximum safety. Usable in combination with 40μm and 65μm prophylactic Bicarbonate and Glycine powders. Subgingival function: its AP-2 handpiece with mini head and flexible and rotatable medical polymer tip for great accessibility, projects a jet of powder and three of water that allow a subgingival treatment of maximum effectiveness and safety in the removal of plaque in depth. Usable in combination with Glycine Mini 25um.
Air polisher characteristics:
- Designed for use with Bicarbonate and Glycine powders.
- Inlet air pressure: 5.5 – 7.5 bar. (This equipment requires a 5.5 -7.5 bar compressed air intake).
- Inlet water pressure: 1 – 5 bar (Optional network connection).
- Flow regulation: 12 levels.
- Power regulation: 12 levels.
2.- ULTRASOUND
With its unique “Painless” technology for painless treatments, the piezoelectric ultrasound integrated into the PT-A is designed for prophylaxis, periodontics and endodontics treatments. PT-A integrates supragingival cleaning, subgingival cleaning, tooth reconstruction, implant maintenance, and root canal therapy as a whole.
With its elliptical movement , it allows the force of the impact to be dispersed, ensuring effective cleaning while reducing discomfort in the patient.
In addition, it allows you to achieve zero degree angles with the dental surface and is usable together with a wide variety of tips, made of titanium alloy and with a hardness lower than enamel and dental cement, specially designed to avoid damaging dental surfaces.
Its powerful YZ-2L handpiece is detachable for autoclaving and fully compatible with EMS-type tips.
The stand-alone supply allows the use of clinical solutions such as: Hydrogen Peroxide, Hypochlorite or Chlorixidine, and the mains supply allows for uninterrupted work.
Ultrasonic features:
- Tip Thread System: EMS® compatible.
- Lighting: 360º LED light.
- Working frequency: up to 35,000 Hz.
- Working range of movement: 90 μm.
- Work program: G- Cleaning; P- Periodontics; E- Endodontics.
- Flow regulation: 12 levels.
- Power regulation: 12 levels.
- Water supply: Autonomous and network.
Supplies include:
ULTRASOUND:
- 2 x YZ-2L handpieces (detachable and autoclavable)
- 14 points.
- 2 TW-5L self-limiting keys.
- 2 Fixed keys.
- 1 Sterilization box for ultrasonic handpiece and accessories.
AEROPOLISHER:
- 2 handpieces.
- 1 AP-1 handpiece (supragingival treatment).
- 1 AP-2 handpiece (subgingival treatment).
- 2 completely transparent funnel powder containers: one for 65μm powders and one for 25μm powders.
- 1 FAST PT-S1 Bircarbonate Jar (300g).
- 1 Bottle of Glycine GENTLE MINI PT-S3 (120g).
- 10 Subgingival Tips (28-AP2TIP).
- 1 Wrench for subgingival tips.
- 2 Sterilization boxes for airpolisher handpiece.
- 2 cleaning needles included.
- 1 Filter wrench.
GENERAL
- 2 water tanks: 1,400ml and 600ml.
- 1 Multifunction pedal.
- 1 Metal carrying case.
- Miscellaneous spare parts:
- Air filter.
- Water filter.
- Set of O-rings.
- 2 LED handpieces.
- Installation Accessories:
- 2 female connectors.
- 1 male connector.
- 1 “T” connection.
- 1 quick connection.
- 2 tubes (Air and water).
Benchtop unit: 2.75 kg / 28 x 12 x 33 cm
Warranty: 24 monts (12 months for the handpiece).
REQUEST DISCOUNT FOR PREMIUM LINE
See section: Tips / Ultrasound Inserts for EMS and Woodpecker
