ENDO GT PRO | WOODPECKER endodontic motor

ENDO GT PRO | WOODPECKER endodontic motor

– Motor + wireless contra-angle with integrated apex locator.

The Woodpecker ENDO GT PRO endodontic motor is an advanced solution designed to deliver precision, safety, and efficiency in modern endodontic treatments:

• Real-time torque control with TorqueSense™ (Explained below in working modes).
• Greater accuracy in electronic readings with ClearSignal™: Eassesses the quality of the electronic signal of the apical locator in real time.
  Its purpose is to indicate whether the signal passes through the root canal stably and reliably, or if there are interferences, interruptions or poor conductivity that may make the measurement of the working length less accurate.

• In addition to T-Mode, it also incorporates T-Mode α and T-Mode Plus for highly curved or double-curved ducts, as well as ATR and adaptive reciprocation.
• Ultra-thin 8 mm head with LED: facilitates access and visibility in posterior molars, especially in patients with limited opening. (Includes another smaller contra-angle head without LED)
• File Library “Build-Your-File”: allows you to create your own files and sequences, mixing different systems and saving custom configurations.

9 SMART WORKING MODES

1. 1. Apex Locator Mode (EAL): intended exclusively for apical localization. allowing the working length of the duct to be measured in real time. It is ideal for working precisely without the need for additional devices.
   2. Normal Mode (CW): continuous rotation in a clockwise direction. You can parameterize: speed (rpm), torque (Ncm)*, what to do when you reach the apical point (STOP / REVERSE / OFF), to start rotating when the file enters the channel (ON / OFF), to set a reference point (flash bar) and whether to reduce the speed when approaching the apical point or not (ON / OFF).*When you reach the preset torque = CCW + acoustic signal and after releasing torque = CW.
   3. Reverse Mode (CCW): Counterclockwise rotation. Ideal for injecting calcium hydroxide and similar. You can parameterize: speed (rpm), set a reference point (flash bar) and whether to reduce the speed when approaching the apical point or not (ON / OFF).
   4. Reciprocal Mode (REC / SGP Safe Glide Path): You can parameterize: speed (rpm), torque (Ncm), forward angle and reverse angle**, what to do when you reach the apical point (STOP / REVERSE / OFF), that it starts to rotate when the file enters the channel (ON / OFF) and set a reference point (flash bar).
      Reduces torsional stress and the risk of file fracture.
   5. Adaptive Torque (ATR) Inversion Mode: File clockwise until it reaches the preset torque limitation. After reaching it, it begins to rotate alternately according to the established angles. You can parameterize: speed (rpm), torque (Ncm), forward angle and reverse angle**, what to do when you reach the apical point (STOP / REVERSE / OFF), that it starts to rotate when the file enters the channel (ON / OFF) and set a reference point (flash bar).
   6. TorqueSense™ Mode: Automatically detects the necessary torque while the file comes into contact with the dentin walls of the canal. For about 2 seconds, the motor “learns” the resistance encountered and calculates the ideal torque for that particular point in the duct.
      Once learned, the team automatically adjusts the torque and, if the effort exceeds the calculated threshold, temporarily switches to a safety reciprocating motion to reduce the risk of fracture or separation of the file.
      There is no need for the doctor to manually set a different torque value for each file or clinical situation.
   7. T-Mode (Intelligent Sequential Mode):
      First you start with an SGP (Safe Glide Path) mode designed to pass a ledge or step that consists of a reciprocating movement with equal angle forward and backward. In this you can set the angle and speed of rotation. Followed by a mode to choose between (Normal, Reverse, Reciprocating or ATR) where you can define all the parameters of each mode. You will start by pressing the activation button to start in SGP mode and after passing the ledge or step, it will be enough to press the new activation button and you will automatically go to the second configured mode. In addition to T-Mode, the ENDO GT PRO includes 2 NEW T-Mode-related working modes:
   8. T-Mode PLUS: Indicated for curved canals without ledges and also for procedures such as MTA filling. It allows three consecutive working modes, two of them of your choice (e.g. SGP → mode to choose → mode to choose) without stopping the engine, which speeds up preparation in wide or curved cases.
      The work dynamics are designed for channels with gentle or moderate curvatures, maintaining a more continuous movement that facilitates the passage of instruments and shuttering.
   9. T-Mode α (Alpha): Designed for canals with double curvature or the presence of “ledges” (steps) in the anatomy of the root canal. It allows 3 reciprocating and rotating movements of your choice (e.g. mode to choose → mode to choose → mode to choose) to facilitate the safe advance of the instrument even in hard-to-reach areas. The idea is to handle transitions of complicated angles or discontinuities in the duct without forcing the instrument.

**F: Forward Angle / R: Reverse Angle.
Both adjustable every 10 degrees in a 20º-400º adjustment range.

Characteristics:

• Compatible with all leading brands of files.
• 10 memorizable programs.
• 30 file systems predefined and programmed according to the specifications of the file manufacturer. (See below)If any: each with different programming groups according to the length and taper of the file.
• Adjustable working angle for easy access to different teeth. 360º head turn.
• Clear, intuitive OLED screen and the largest in a handpiece.
• Easy to operate.
• Lightweight handpiece: 128 g. (battery)
• Large capacity battery: 2,000 mAh.
• Super mini head (Ref.: 28-ME004):
  • 8 mm in diameter and 9.7 mm in height -> greater visibility.
  • 6:1 reduction -> increased precision and cutting capacity.
  • Planetary gearbox -> increased durability.
  • Autoclavable.
• Automatic calibration function.
• Adjustable torque: 0.4 Ncm to 5.0 Ncm.
• . Adjustable speed: 50 to 3,000 rpm
• Unit and handpiece warranty: 24 months
• Contra-angle warranty: 12 months

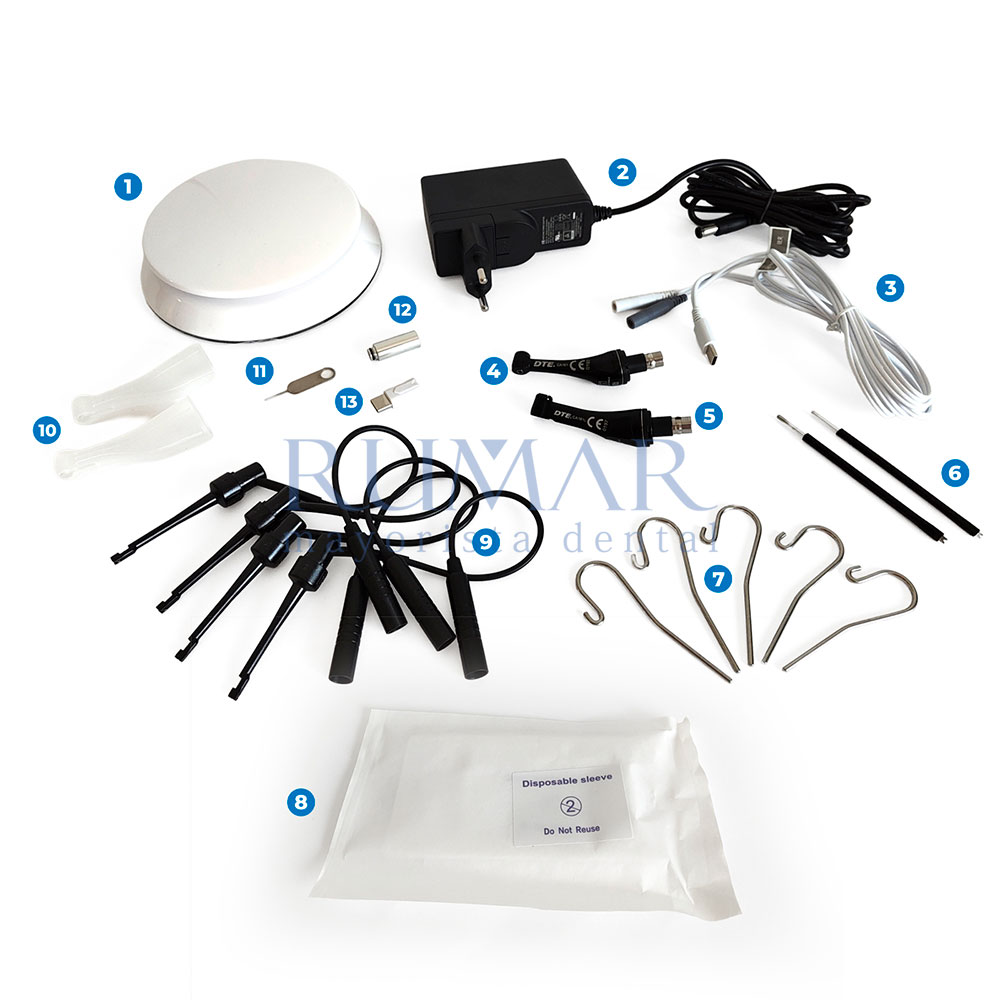

• Supplies include:
  1. 1x Wireless Foot Pedal
  2. Transformer
  3. 1x Measuring cable
  4. Head contra-angles WITHOUT light
  5. Head contra-angles WITH LED light
  6. 2x Touch Probes
  7. 5x Lip Hooks
  8. 1x Pack of 100 disposable sleeves
  9. 4x Clips
  10. 2x Silicone Case
  11. 1x Key to activate Wifi/Bluetooth Pedal
  12. 1x Lubricating nozzle
  13. 1x Tester

LIST OF PREDEFINED FILE SYSTEMS:
