MOTOPEX | WOODPECKER endodontic motor
Compact and lightweight and ideal for specialized endodontists! – Motor + wireless contra-angle with integrated apex locator – Brushless motor of higher performance, precision and durability It also has an automatic recoil function to effectively prevent file fractures.
The latest technology to have all the information in real time and dynamic torque control. With automatic reverse function to effectively prevent file fractures.
*5 Modes Available:
- Apex Locator Mode (EAL): Measurement only. You have a detail of 9 steps at the apex and apart from the apex, you can set a reference point manually (flash bar).
- Normal Mode (CW): Clockwise rotation. You can parameterize: speed (rpm), torque (Ncm)*, what to do when you reach the apical point (STOP / REVERSE / OFF), that it starts to rotate when the file enters the channel (ON / OFF), set a reference point (flash bar) and whether to reduce the speed when approaching the apical point or not (ON / OFF).
*Upon reaching the preset torque = CCW + acoustic signal and after releasing torque = CW.
- Reverse mode (CCW): counterclockwise rotation. Ideal for injecting calcium hydroxide and similar.
You can parameterize: speed (rpm), set a reference point (flash bar) and whether to reduce the speed when approaching the apical point or not (ON / OFF).
- Reciprocal Mode (REC):P you can parameterize: speed (rpm), torque (Ncm), forward angle and reverse angle**, what to do when you reach the apical point (STOP / REVERSE / OFF), to start rotating when the file enters the channel (ON / OFF) and set a reference point (flash bar).
- Adaptive Torque (ATR) Inversion Mode I: File clockwise until it reaches the preset torque limitation. After reaching it, it begins to rotate alternately according to the established angles. You can parameterize: speed (rpm), torque (Ncm), forward angle and reverse angle**, what to do when you reach the apical point (STOP / REVERSE / OFF), that it starts to rotate when the file enters the channel (ON / OFF) and set a reference point (flash bar).
**F: forward angle / R: reverse angle.
Both adjustable every 10 degrees in an adjustment range of 20º-400º.
Characteristics:
- Compatible with all leading brands of files.
- 10 memorizable programs.
- 30 file systems predefined and programmed according to the specifications of the file manufacturer. (See below)If any: each with different programming groups according to the length and taper of the file.
- Adjustable working angle for easy access to different teeth. 360º head turn.
- Clear, intuitive OLED screen and the largest in a handpiece.
- Easy to operate.
- Lightweight handpiece 158 g.
- Large capacity battery: 2,000 mAh.
- Super mini head (Ref.: 28-ME004):
- 8 mm in diameter and 9.7 mm in height -> greater visibility.
- 6:1 reduction -> increased precision and cutting capacity.
- Planetary gearbox -> increased durability.
- Autoclavable.
- Automatic calibration function.
- Adjustable torque: 0.4 Ncm to 5.0 Ncm.
- Adjustable speed: 100 to 1,200 rpm.

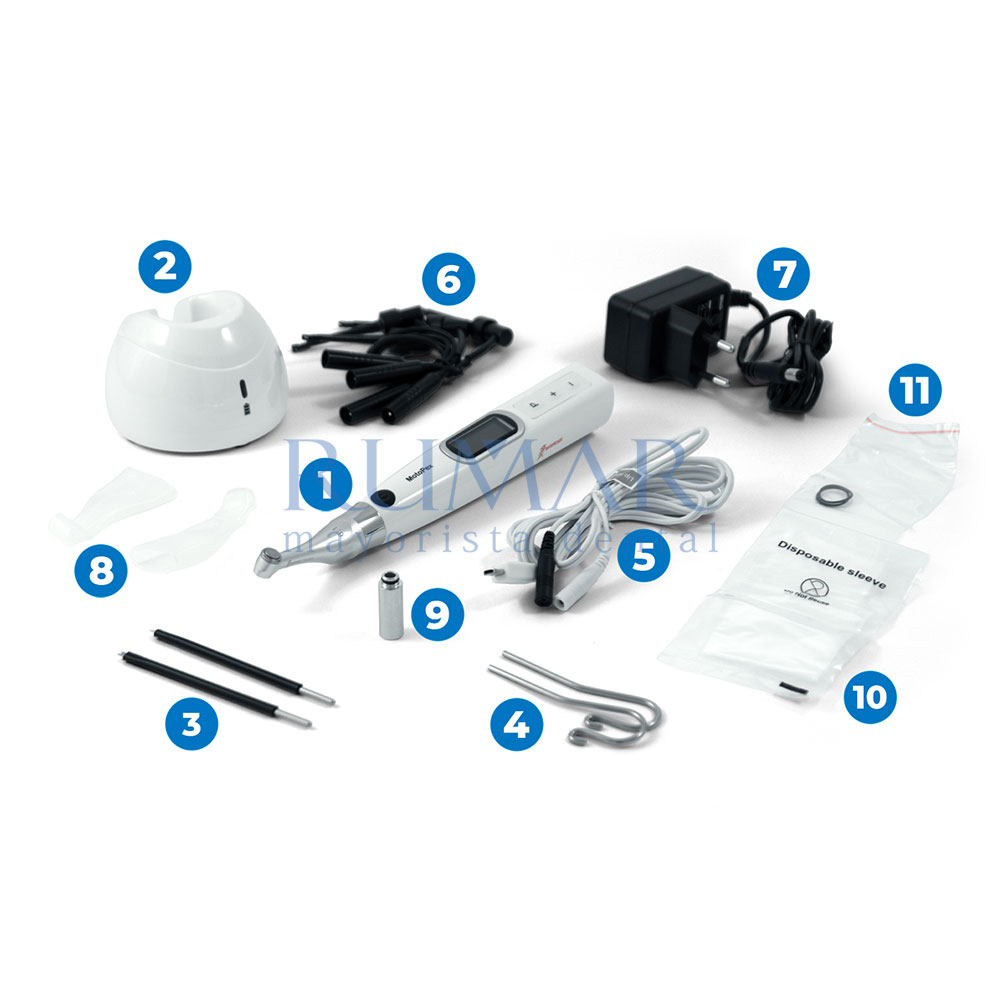

- Supplies include:
- Handpiece
- Charging Dock
- Accessories:
- 1x Measuring cable
- 4x File Hook
- 2x Lip Hooks
- 2x Touch Proves (Pulp Test Tips)
- 2x Silicone Protective Sleeves
- 1x Pack Disposable Covers
- Unit and handpiece warranty: 24 months
- Contra-angle warranty: 12 months
LIST OF PREDEFINED FILE SYSTEMS:
1.- W3-Pro | 11.- ProTaper | 21.- Revo-S |
2.- W2-ONE | 12.- ProTaper Next | 22.- One Shape |
3.- W3-Single | 13.- PathFile | 23.- One Shape Apical |
4.- W2-Plus | 14.-RECIPROC | 24.- G-Files |
5.- W2-One | 15.- RECIPROC Blue | 25.- Endo Flar |
6.- W2-Pro | 16.-Mtwo | 26.- iRace |
7.- ENDO-Plus | 17.- FlexMaster | 27.- BioRace |
8.- W2 | 18.- K3 | 28.- Gate |
9.- Wave-One | 19.- K3XF | 29.- XP-endo Finisher |
10.- Wave One Gold | 20.- TF | 30.- XP-endo Shape |
