Endo Radar PLUS | WOODPECKER DTE endodontic motor

Endo Radar PLUS | Woodpecker DTE endodontic motor with integrated apex locator.

Large luminous display, wireless base and wireless handpiece.
Ideal for clinics!

If any: each with different programming groups according to the length and taper of the file.

… As for the engine:

• 27 file systems predefined and programmed according to the specifications of the file manufacturer. If any: each with different programming groups according to the length and taper of the file.

14X fully customizable programs:

• ARI Mode: Adaptive Reciprocating Inteligent. What is ARI? Software integrated into Woodpecker’s Endo Radar Plus engine, which dynamically controls torsional stress during reciprocation.
  When the stress of the instrument on the duct increases, ARI automatically adjusts the reciprocation angles by decreasing them. After releasing the stress, return to the angles initially established.
• 8 simple where you can parameterize: torque, speed, auto rev / auto stop / OFF, hour movement / counterclockwise movement.
• 3 reciprocators (SGP – Safety Glide Path) where you can parameterize: torque, speed and the angles of the reciprocating movement in detail (every 10º!).
• 2 ATR (Adaptive Torque Reverse) one clockwise and one counterclockwise motion.



… As for the apex locator:

Maximum precision with its 10 levels of detail and the possibility of marking the apical warning point we want.



… and in the combined function:
All the functions of the motor and the apex locator.



and ALSO…

• 3 possible actions when reaching the apical point:
  • AP. STOP: stop.
  • AP. REV: switch to counterclockwise motion.
  • Deactivated.
• .SL. D.: reduce speed when approaching the apical point.
  • Deactivated.
• AUTO: the file begins to rotate as it enters the canal.
  • Deactivated.



Characteristics:

• Compatible with all leading brands of files.
• Adjustable working angle for easy access to different teeth. 360º head turn.
• Large 2.8″ HD LCD touch screen, usable even with wet gloves.
• VERY easy to operate.
• Lightweight handpiece: only 156gr.
• Large capacity battery: 2,000mAh with wireless charging.
• Super mini head (Ref.: 28-ME004):
  • 8mm in diameter and 9.7mm in height -> greater visibility.
  • 6:1 reduction -> increased precision and cutting capacity.
  • Planetary gearbox -> increased durability.
  • Autoclavable.
• Automatic calibration function.
• Adjustable torque: 0.4 Ncm to 5.0 Ncm.
• Adjustable speed: 100 to 1,200 rpm.

Unit and handpiece warranty: 24 months
Contra-angle warranty: 12 months

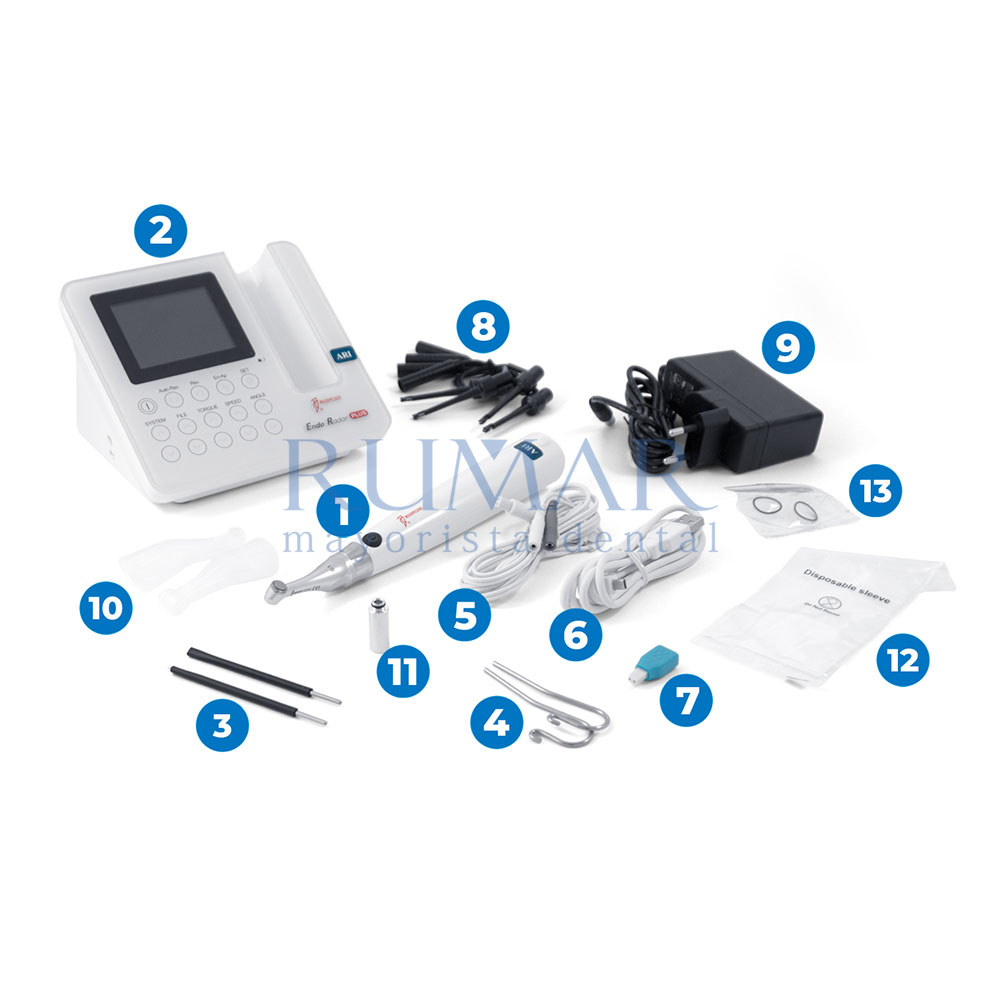

Supplies include:

• Main unit.
• Wireless micromotor with apex locator.
• Protective silicone cover.
• Contra angle.
• USB cable.
• Lubricant.
• Measurement cable.
• Clip files.
• Lip hook.
• Contact guide.
• Adaptor.
• Tester.
• Instruction manual.







LIST OF PREDEFINED
FILE SYSTEMSEndo Radar Plus (ARI Mode):



1.- W3-Pro	9.- PathFile	17.- Endo Flare
2.- W3-Single	10.- K3	18.- iRace
3.- W2-Plus	11.- K3XF	19.- BioRace
4.- W2-Pro	12.- TF	20.- Gates
5.- W2	13.- Revo-S	21.- XP-endo Finisher
6.- ENDO-Plus	14.- One Shape	22.- XP-endo Shaper
7.- ProTaper	15.- One Shape Apical	23.- Program
8.- ProTaper Next	16.- G-Files
